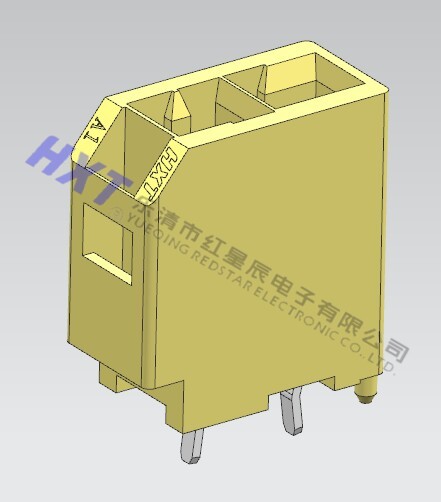

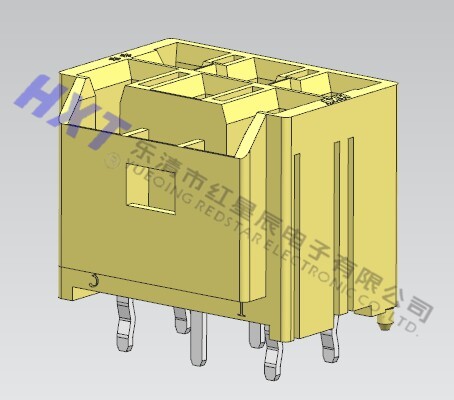

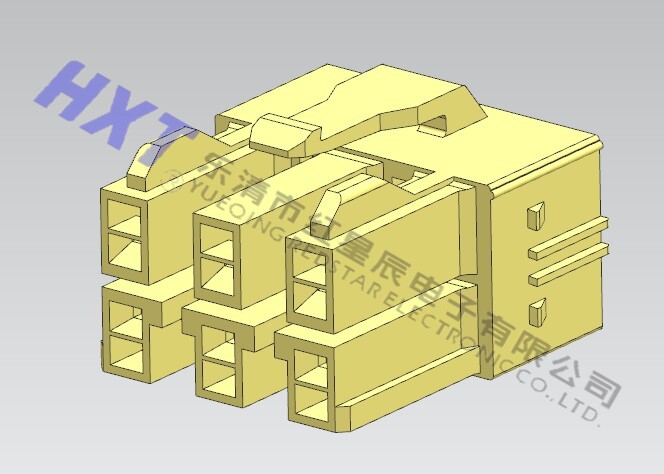

65003 連接器

■技術參數(SPECIFICATIONS)

口線數(Poles):2、4、6

口適用線規(guī)(Applicable wires):AWG22#~14#

口適用基板厚度(Applicable PC board thickness):1.6mm

口溫度范圍(Temperature range):-25℃～85℃

口額定電壓(Voltage rating):600V.AC/DC

口額定電流(Current rating):10A Max

口接觸電阻(Contact resistance):≤0.01Ω

口絕緣電阻(Insulation resistance):≥1000MQ

口耐壓(Withstand voltage):1500V.AC/1min

口材料(Material):

口插頭(P.Houshing):PBT UL94V-0

口針座(Wafer):尼龍(PA66+GF)UL94V-2(0)

口鎖片(Retainer):尼龍(PA66)UL94V-2(0)

口端子(Terminal):磷青銅
